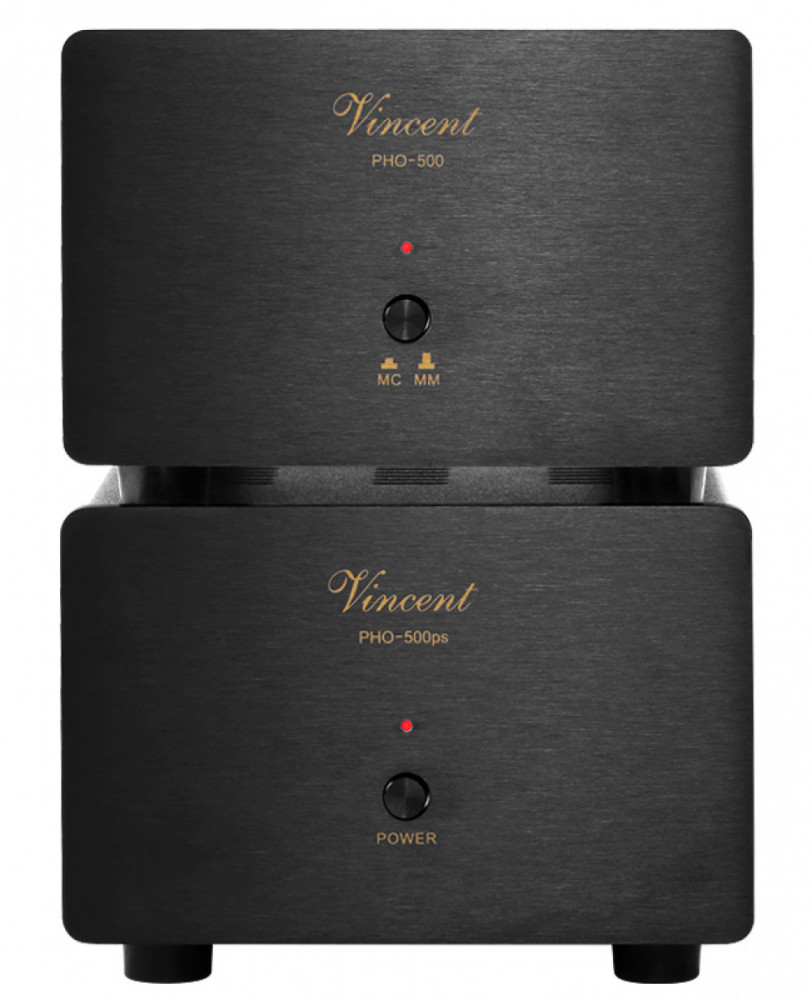

Vincent PHO-500

A unsophisticated and low noise playback is the "job" of a good phono preamplifier. With the PHO-500 we managed this. The reason for is in the first step a complex drafted power supply, which is built in an external housing and in the second step the careful choosen components. Besides you can make individual adjustments by DIP-switches on the PHO-500.

Technical Specifications
Frequency Response: 10 Hz – 20 kHz ±0.5 dB, 10 Hz – 50 kHz ±2 dB
T.H.D.: < 0.05% (20 Hz - 20 kHz)
Input Sensitivity: MM: 58 mV, MC 6,8 mV
Signal-to-Noise: MM: > 83 dB, MC: > 70 dB
Input Impedance: MM: 47 KOhm, MC: 100 Ohm - 1000 Ohm (adjustbale)
Input Capacity: MM: 15 pF - 350 pF (adjustable), MC: 15 pF
Output Impedance: 250 Ohm

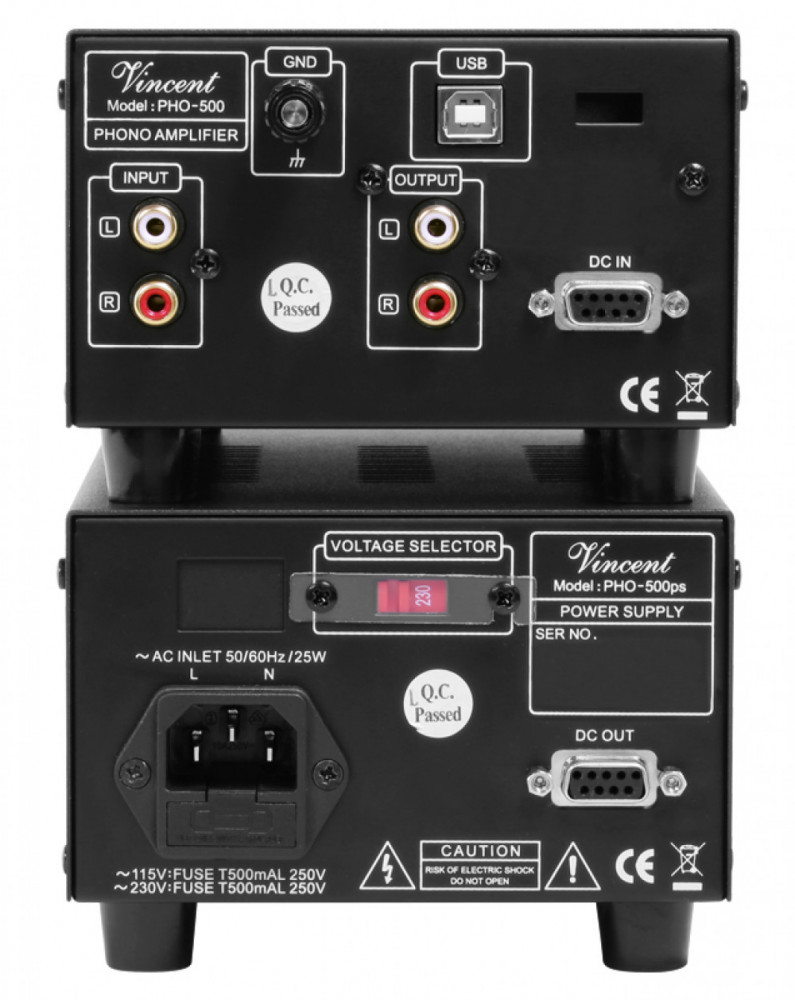

Inputs: PHO-500 1 x Stereo RCA
Outputs: PHO-500 1 x Stereo RCA, USB
Max. Power Consumption: 10 Watt
Weight: 1,4 kg (power supply), 1 kg (PHO-500)

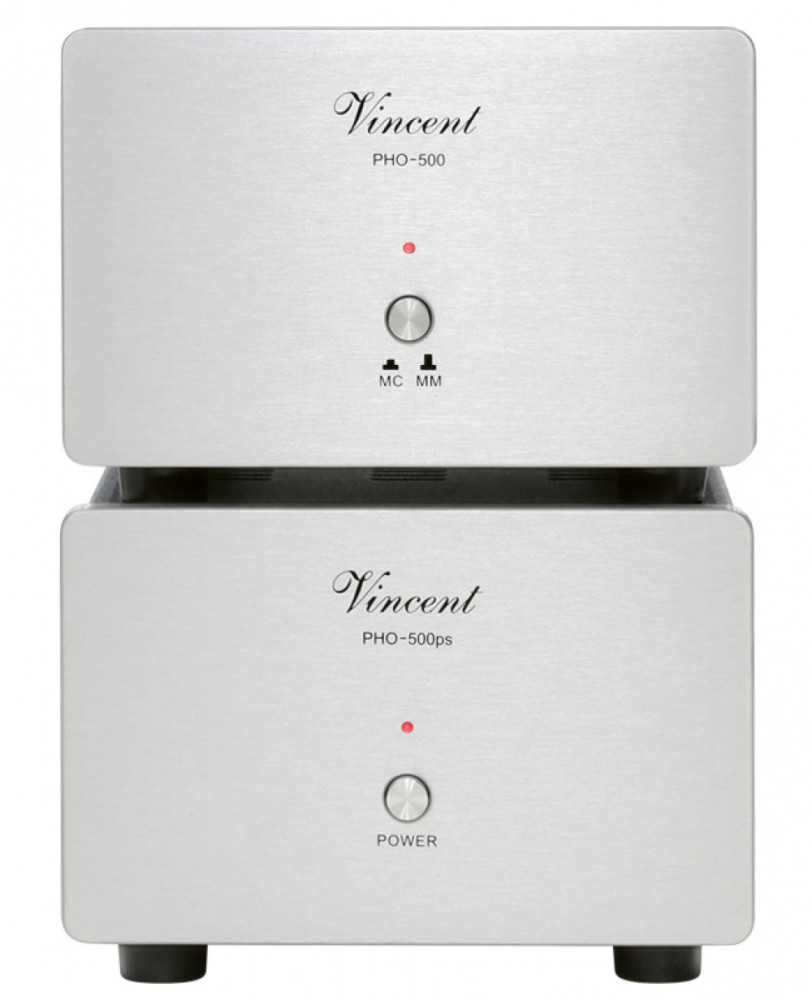

Color: Black or Silver
Dimensions (W x H x D): 130 x 95 x 205 mm (for power supply and PHO-500 each)
