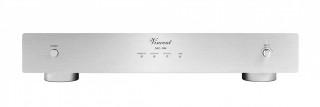

Vincent DAC-1MK

DAC från Vincent

The DAC-1MK converts digital music files with a max. sampling rate of 32 bit / 384 kHz (DSD). The core is the ES9038 decoder, which processeds the signal fully balanced to the analog section.

Technical Specifications

Sampling Rate Coaxial, Optical: PCM 24 Bit / 192 kHz (DSD 64)
Sampling Rate USB: PCM 32 Bit / 384 kHz (DSD 256)
Frequency Response: 20 Hz – 20 kHz (+/-0,5 dB),
Total Harmonic Distortion: <0.0004 %

Signal-To-Noise Ratio: >95 dB

Dynamic Range: >100 dB

Audio Output Voltage: 2.5 V
Channel Separation: >90 dB
Max. Power Consumption: 35 W
Inputs: 1 x USB, 1 x Optisch, 1 x Coax, 3,5 mm jack power control
Outputs: 1 x Stereo RCA, 1 x Stereo XLR, 3,5 mm jack power control
Playable Formats: MP3, WMA, AAC, AAC+, ALAC, FLAC, APE, WAC, DSD
Colour: Black / Silver
Dimensions: 430 x 79 x 343 mm
Weight: 5.5 kg
