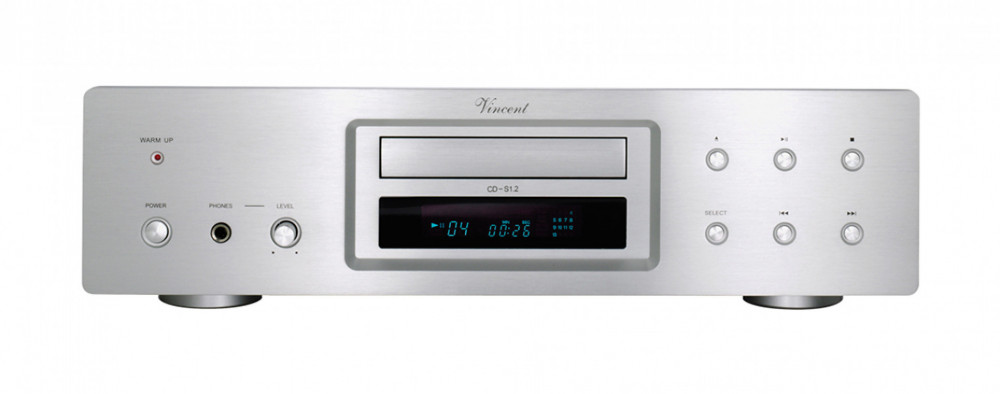

Vincent CD-S1.2

The successor of our CD-S1.1 offers now also the possibilty to process external, digital signals via an optical, coax or USB input. Those are converted through the Burr-Brown chip PCM 1796. In the analog section the signal is conditioned through two 6N16 tubes which are responsible for a homogeneous and distinctive sound.

Technical Specifications
D/A Converter: 24 bit / 192 kHz
Frequency Response: 20 Hz - 20 kHz
T.H.D.: < 0.005 %
Signal-Noise-Ratio: > 94 dB
Dynamic Range: > 100 dB
Audio Output Voltage: 2.5 V
Channel Separation: > 90 dB
Max. Power Consumption: 35 Watts
Inputs: 1 x Optical, 1 x Coaxial, 1 x USB, 1 x Power Control
Outputs: 2 x Stereo RCA, 1 x Stereo XLR, 1 x Coaxial, 1 x Power Control, 1 x Headphone Jack
Tubes: 2 x 6N16
Colour: Black or Silver
Weight: 8.5 kg
Dimensions (W x H x D): 430 x 106 x 342 mm
