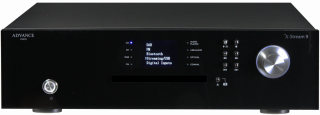

Advance Acoustic X-Stream 9

Advance Paris has been passionately designing products for demanding audiophiles for more than 20 years.The universal source X-Stream 9 is no exception to the rule. It will satisfy the lover of quality sound on all its sources. The doors of high definition audio will be open to him!

The X-Stream 9 is a network drive, a DAC, a CD player, a PC / MAC drive via its USB-B X-MOS asynchronous input and a digital DAB / DAB + and FM tuner.

Whatever the files of your favorite music - PC or MAC computer, smartphone, tablet, network hard disk, NAS or CD disc, you could enjoy a sound quality of the highest level.

"Without limit" was our philosophy regarding the design of our universal source. Our engineers have integrated the best technologies with the unique condition that the results obtained result in a soothing listening without aggressiveness of total purity.

The audio output stage as well as the decoding part have been particularly cured. Signal conversion is supported by the AK4490 from AKM.

The AK4490 is part of a new generation of high-end 32-bit DACs based on AKM's VELVET SOUND architecture, which has been widely adopted by established high-end audio companies. This technology delivers high-quality sound detail with its low-distortion architecture, in addition to 32-bit resolution digital filter processing.

The AK4490 supports up to 768kHz PCM and 11.2MHz DSD (Direct Stream Digital), suitable for playback of high-resolution audio sources.

Five digital filters are integrated in the DAC thus optimizing the sound reproduction.

The AK4490EQ is suitable for converting high-resolution sound sources that the X-Stream 9 masters perfectly. Combined with our low audio stage, this low-distortion DAC (-112dB based on a signal-to-noise ratio of over 120dB) will increase your listening pleasure!

The network player part of the X-Stream 9 allows to manage the streaming services (Spotify, Qobuz ...), several thousand local, national and global radios, reading your music stored locally on your computer or network drive.

Compatible with Airplay and DLNA.

Control of your network drive can be done via the ADVANCE PLAYSTREAM app that can be downloaded from the AppStore and Google Play.

The X-Stream 9 has a CD player integrating the latest generation of servo Tamul ensuring a stable and qualitative playback of your CDs. The solution used combines a 16-bit processor and a 24-bit DSP. It supports CD, CD-R / RW, CD-DA (MP3 / WMA) playback.

Our universal source is also equipped with an USB-B X-MOS input for direct connection of your PC or MAC computer. This 32-bit / 8-core asynchronous "high-speed" input enables playback of all types of files up to DSD 5,6GHz.

The X’Stream 9 can be set to variable or fixed output for a perfect match with the input level of your integrated amplifier. The volume will be controlled from the remote control or via the device itself.

The X-Stream 9 is also a DAC, it has 3 optical inputs and 2 optical inputs.In addition, our player has both balanced (XLR) and unbalanced analog stereo (RCA) stereo outputs as well as two optical and coaxial digital outputs.

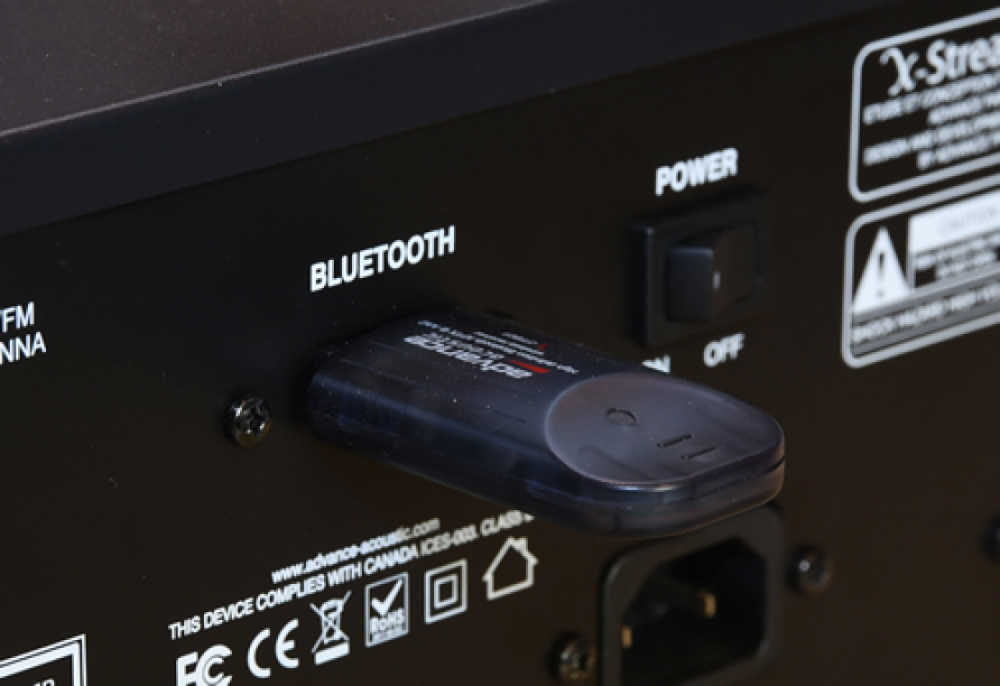

The X-Stream 9 includes a Bluetooth Direct Digital (BDD) port for connecting our X-FTB 01 digital Bluetooth receiver. This receiver incorporates the APTX which ensures CD quality on all your sources.

SPECIFICATIONS

OUTPUT LEVEL Unbalanced 2 volts

OUTPUT LEVEL balanced 4 volts

FREQUENCY RESPONSE (+/-3dB) 20Hz - 45 kHz

DISTORTION < 0.005%

OUTPUT IMPEDANCE 10KΩ

CHANNEL SEPARATION > 110dB

S/N RATIO > 110dB

DAC DIGITAL AUDIO 32bit-768kHz AK4490

DIGITAL AUDIO PCM TRANSCEIVER AK4118

USB AUDIO / DSD XMOS XU208-256

AC INPUT 115 or 230V

POWER CONSUMPTION MAX Max 30W

DIMENSIONS H. 130 x l. 230 x D. 310

NET WEIGHT / GROSS WEIGHT 3,8 kg / 5,4 kg

2.4G Wi-Fi network compatibility: IEEE 802.11b/g/n

Wi-Fi transmitter frequency range: 2412 – 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)
Wi-Fi transmitter power: <20dBm (EIRP)

Wi-Fi modulation: OFDM, DSSS, DBPSK, DQPSK, CCK, 16QAM, 64QAM
