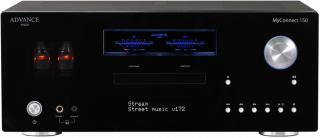

Advance Acoustic MyConnect 150

"Allt i ett" rör-hybrid förstärkare med rör i försteget.

AN AUDIOPHILE ALL-IN-ONE REALLY UNIVERSAL !

All-in-One system with built-in tubes

The MyConnect 150 is a built-in stereo system with tubes for the attention of discerning audiophiles. Equipped with a tube preamplifier, the MyConnect 150 shines by the exceptional musicality it delivers worthy of the best separate electronics. Its amplifying section of 2x150W will drive brilliantly the most difficult speakers, allowing a sound reproduction of high level.

Multisources, the MyConnect 150 is particularly versatile to reproduce dematerialized sources as well as physical sources: it integrates a network player for reading your music library from your smartphone, your tablet, your PC or MAC, your hard network or your USB, CD. It is drived from our Advance playstream app available on the AppStore or GooglePlay. It integrates the best streaming services like Spotify, Qobuz, Deezer, Tidal, TuneIn and many others.

In addition to the network drive, it has a CD player, a FM tuner, a DAB / DAB + tuner, a Bluetooth port compatible with the high-definition X-FTB2 dongle (or X-FT01), an X-MOS USB-B input for direct connection of a PC or MAC.

Streaming Multiroom app Spotify Tidal

Bluetooth möjlighet

FM/DAB Internet Tuner

CD Spelare

Connect 150 Rör hybrid förstärkare 2x150 W

3 Högt utgångar A,B,C

Riaa steg MM/MC

Sub out

Pre out

Main In

Dac med Usb in

Trådlöst & fast nätverks anslutning

Hörlursuttag

SPECIFICATIONS

POWER OUTPUT 8Ω, 4Ω and 2,66Ω 130W, 190W and 250W CLASS AB

OUTPUT LEVEL Unbalanced (max volume) 9 volts

FREQUENCY RESPONSE (+/-3dB) 2 0Hz - 80 kHz

DISTORTION < 0.006% @1KHz/1W

SIGNAL TO NOISE HN 105dB

OUTPUT IMPEDANCE 10KΩ

CHANNEL SEPARATION > 110dB

DAC DIGITAL AUDIO AKM AK4490 (32bit - 768kHz)

DIGITAL AUDIO PCM TRANSCEIVER AK4118

INTERFACE DE RECEPTION USB/DSD

* Optical input supporting : 24bit - 96kHz PCM

* Coaxial input supporting : 24bit - 192kHz PCM

* USB audio PCM input supporting 24bit/32bit 44,1kHz - 384kHz

* USB audio PCM input supporting 2.8MHz (DSD64)-DOP/5.6MHz, (DSD128)-DOP/11.2MHz (DSD 256)-DOP

AC INPUT 115/230V 50/60Hz

TENSION SECTEUR

POWER CONSUMPTION MAX Max 900W

CONSOMMATION MAXIMALE

DIMENSIONS H. 170 x l. 371 x D. 430

NET WEIGHT 14,5 KG

Gross WEIGHT 17,2 KG
